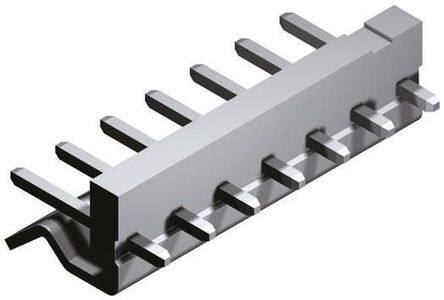

10-32-1071
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings STRGT .200 HDR 7P SPOX
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.973308
≥1 USD $0.973308
≥10 USD $0.918212
≥100 USD $0.866241
≥500 USD $0.817209
≥1000 USD $0.770946
Inventory: 3626
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Housing Material Nylon
Technical
Packaging Bulk
Published 2006
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 1
Additional Feature SPOX
HTS Code 8536.69.40.40
Fastening Type Friction
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating SN ON CU
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 5.08mm
Orientation Vertical
Current Rating 7A
Number of Conductors ONE
Reference Standard UL,CSA,TUV
Reliability COMMERCIAL
Lead Pitch 5.08mm
Number of Contacts 7
Contact Length - Mating 10.6426mm
Body Breadth 0.402 inch
Contact Gender Male
UL Flammability Code 94V-2
Lead Length 3.6mm
Body Depth 0.508 inch
Contact Style SQ PIN-SKT
Contact Resistance 10mOhm
Body/Shell Style RECEPTACLE
Max Voltage Rating (AC) 250V
Durability 30 Cycles
Halogen Free Low Halogen
Mating Post Length 10.65mm
Glow Wire Compliant Non-compliant
Dimensions
Plating Thickness 200μin
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
