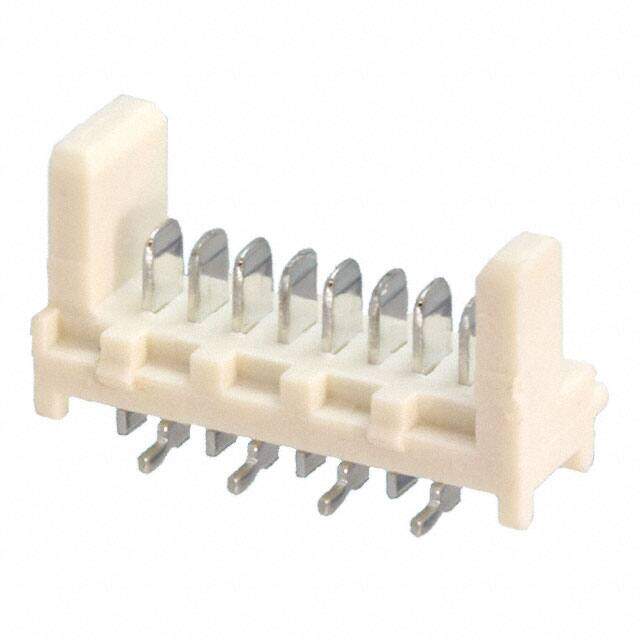

0934050508
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 10 POS 2.54mm Solder ST SMD Picoflex? Embossed T/R
PDF
/
Inventory: 3013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Total Number of Contacts 8
Insulation Height 0.203 5.16mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reliability COMMERCIAL
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.085 2.15mm
Mating Contact Pitch 0.05 inch
Dielectric Withstanding Voltage 750VAC V
Current Rating (Amps) 1.2A
Contact Type Male Blade
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Picoflex 93405
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Cartridge Brass
