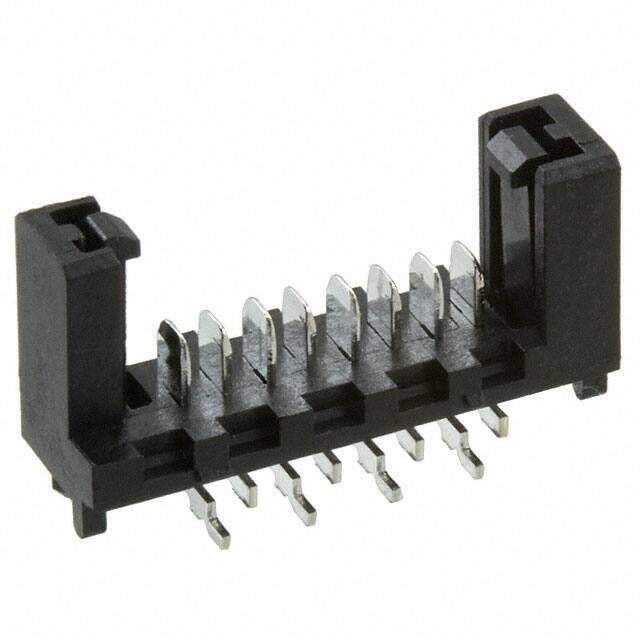

0908160208
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 8POS 1.27MM
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.71104
≥100 USD $0.592592
Inventory: 22016
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 HB
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Technical
Glow Wire Compliant Non-compliant
Number of Circuits 8
Contact Length - Mating 0.083 2.10mm
Contact Finish - Post Tin
Number of Contacts 8
Shrouding Shrouded - 2 Wall
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1.2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.333 8.45mm
Orientation Vertical
Pitch 1.27mm
Current Rating (Amps) 1.2A
Contact Type Male Blade
Contact Finish - Mating Tin
Fastening Type Latch Lock
Voltage - Rated 250V
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Picoflex 90816
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyphthalamide (PPA), Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 30 Weeks
