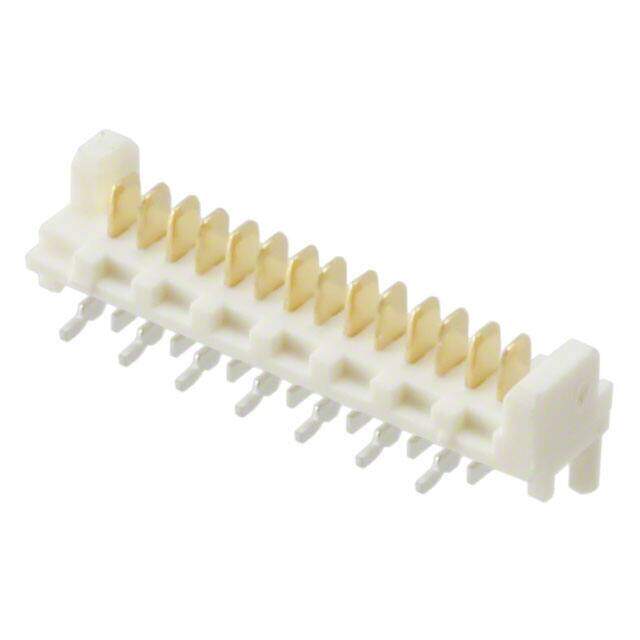

0908143914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 14POS VERT SMD GOLD
PDF
/
Buying Options
Total Price: USD $2.66
Unit Price: USD $2.6576
≥1 USD $2.6576
≥10 USD $2.33992
≥100 USD $1.8612
Inventory: 8925
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Physical
Contact Material Cartridge Brass
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Packaging Tape & Reel (TR)
Series Picoflex PF-50 90814
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Additional Feature LOW PROFILE, POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Palladium-Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Current Rating (Amps) 1.2A
Total Number of Contacts 14
Insulation Height 0.161 4.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.849 inch
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.085 2.15mm
PCB Contact Pattern STAGGERED
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.203 inch
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Withdrawl Force-Min .2502 N
Dimensions
Plating Thickness 24μin
Contact Finish Thickness - Mating 24.0μin 0.61μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
