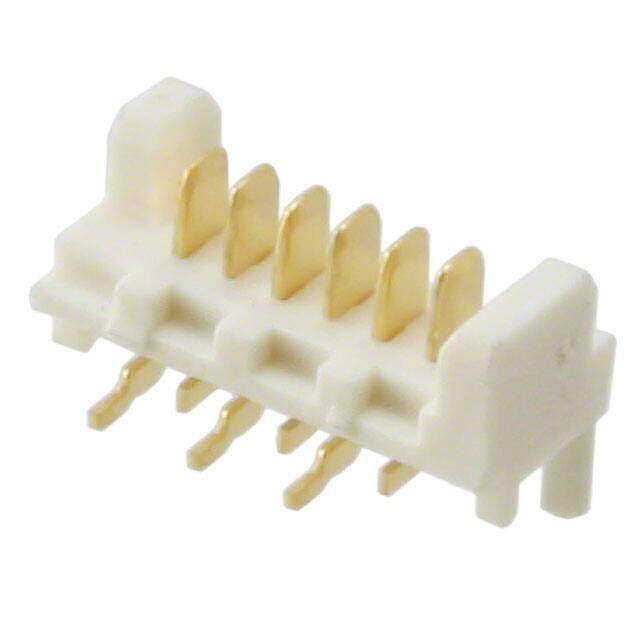

0908143906
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Picoflex HDR 6 POS 2.54mm Solder ST SMD Picoflex? Embossed T/R
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.298
≥100 USD $1.072544
Inventory: 17118
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 24.0μin 0.61μm
Plating Thickness 24μin
Technical
Withdrawl Force-Min .2502 N
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Mating Contact Pitch 0.05 inch
Body Depth 0.203 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.085 2.15mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Body Length or Diameter 0.449 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.161 4.10mm
Total Number of Contacts 6
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Palladium-Nickel
Fastening Type Push-Pull
Additional Feature POLARIZED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Picoflex PF-50 90814
Packaging Cut Tape (CT)
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Cartridge Brass
Supply Chain
Factory Lead Time 31 Weeks
