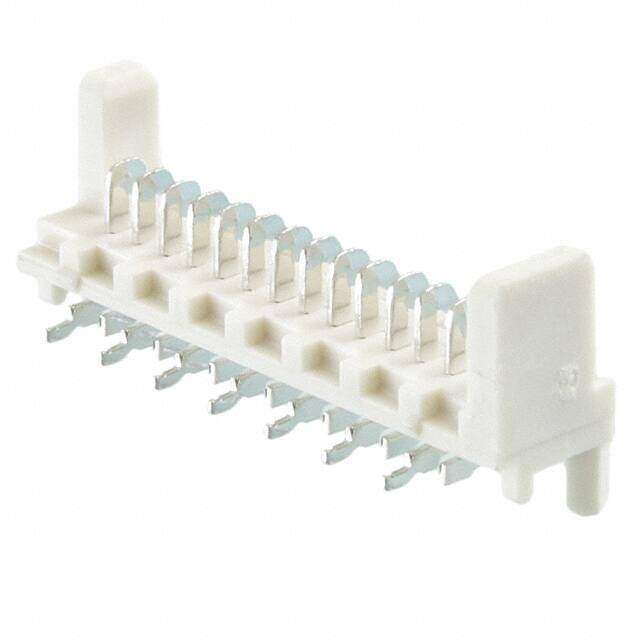

0908140914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Picoflex HDR 14 POS 2.54mm Solder ST SMD Picoflex? T/R
PDF
/
Buying Options
Total Price: USD $1.05
Unit Price: USD $1.0472
≥1 USD $1.0472
≥10 USD $0.8668
≥100 USD $0.722216
Inventory: 3107
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Technical
Withdrawl Force-Min .2502 N
Durability 30 Cycles
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Mating Contact Pitch 0.05 inch
Body Depth 0.203 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.085 2.15mm
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Body Length or Diameter 0.849 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.161 4.10mm
Total Number of Contacts 14
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Picoflex PF-50 90814
Packaging Tape & Reel (TR)
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Cartridge Brass
Supply Chain
Factory Lead Time 30 Weeks
