0908140906
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

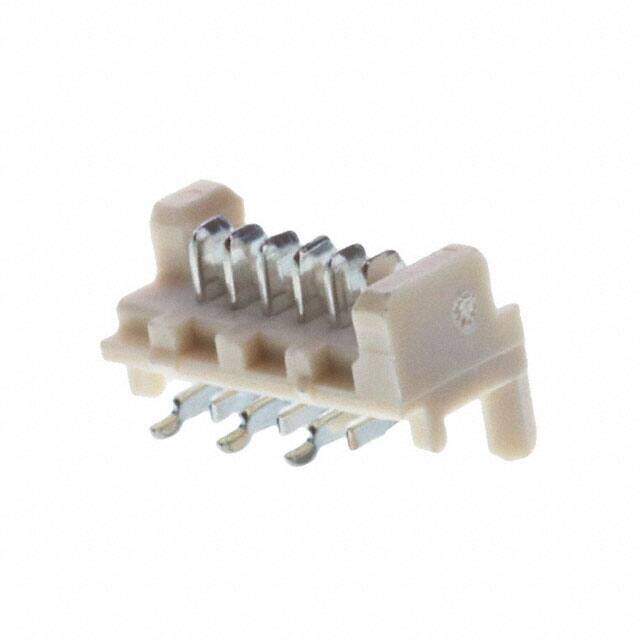

CONN HEADER 6POS 1.27MM VERT SMD
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.59752
≥100 USD $0.498256
Inventory: 1294
Minimum: 1
-
+
Technical Details
Technical
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
JESD-609 Code e3
Series Picoflex PF-50 90814
Packaging Tape & Reel (TR)
Withdrawl Force-Min .2502 N
Durability 30 Cycles
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Mating Contact Pitch 0.05 inch
Body Depth 0.203 inch
Operating Temperature (Min) -40°C
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.085 2.15mm
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Body Length or Diameter 0.449 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.161 4.10mm
Terminal Pitch 2.54mm
Total Number of Contacts 6
Current Rating (Amps) 1.2A
Contact Type Male Blade
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Cartridge Brass
Supply Chain
Factory Lead Time 30 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
