0908140812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

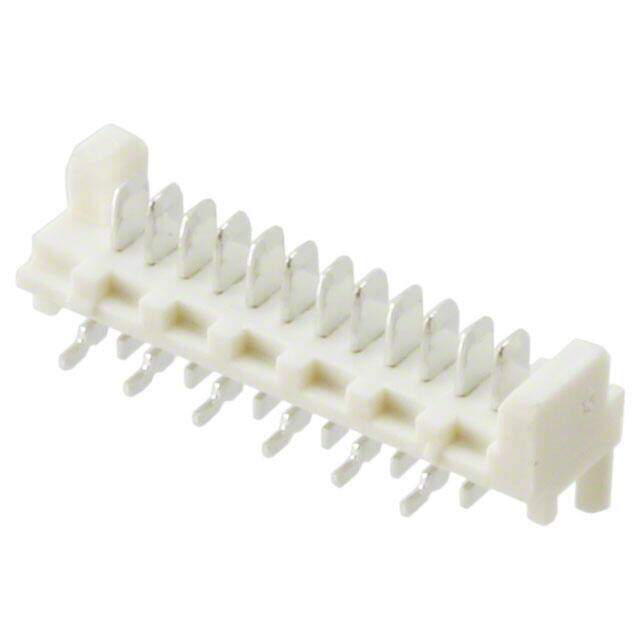

Conn Picoflex HDR 12 POS 2.54mm Solder ST SMD Picoflex? Tube
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.798917
≥100 USD $0.665738
≥500 USD $0.532567
≥1000 USD $0.465995
≥3000 USD $0.442702
Inventory: 8831
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 30 Weeks
Physical
Contact Material Cartridge Brass
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Packaging Tube
Series Picoflex PF-50 90814
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLARIZED
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Current Rating (Amps) 1.2A
Total Number of Contacts 12
Insulation Height 0.161 4.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.749 inch
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.085 2.15mm
PCB Contact Pattern STAGGERED
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.203 inch
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Durability 30 Cycles
Withdrawl Force-Min .2502 N
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
