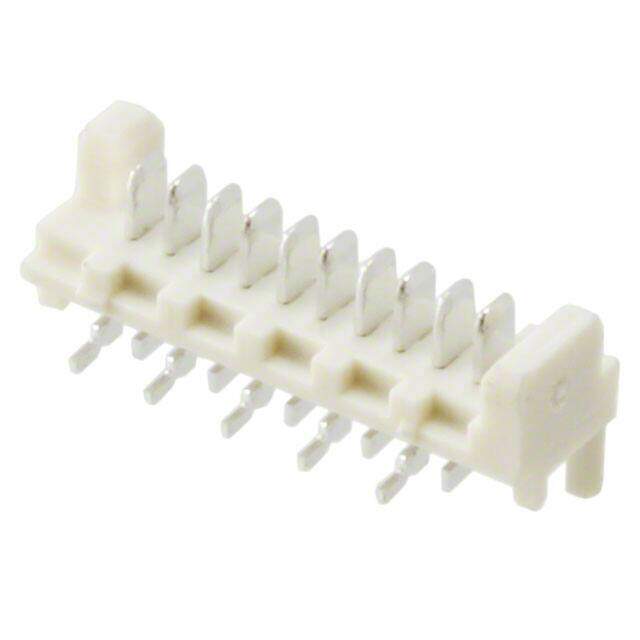

0908140610
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 10POS 1.27MM
PDF
/
Inventory: 8275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Cartridge Brass
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Packaging Bulk
Series Picoflex PF-50 90814
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Current Rating (Amps) 1.2A
Total Number of Contacts 10
Insulation Height 0.161 4.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.649 inch
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.085 2.15mm
PCB Contact Pattern STAGGERED
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.203 inch
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Durability 30 Cycles
Withdrawl Force-Min .2502 N
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
