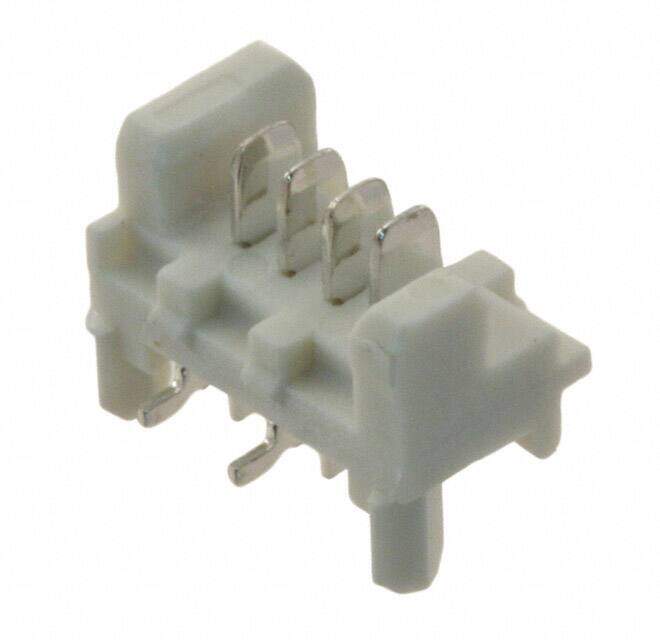

0908140604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings P/FLEX SMT H/R W/O P LEX SMT H/R W/O PEGS
PDF
/
Inventory: 5262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Length 8.86mm
Technical
Withdrawl Force-Min .2502 N
Max Voltage Rating (DC) 250V
Durability 30 Cycles
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Max Voltage Rating (AC) 250V
Mating Contact Pitch 0.05 inch
Contact Resistance 15mOhm
Housing Color Beige
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.085 2.15mm
Number of Contacts 4
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Current Rating 2.4A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.161 4.10mm
Depth 6.9mm
Orientation Vertical
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Picoflex PF-50 90814
Packaging Tube
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Cartridge Brass
