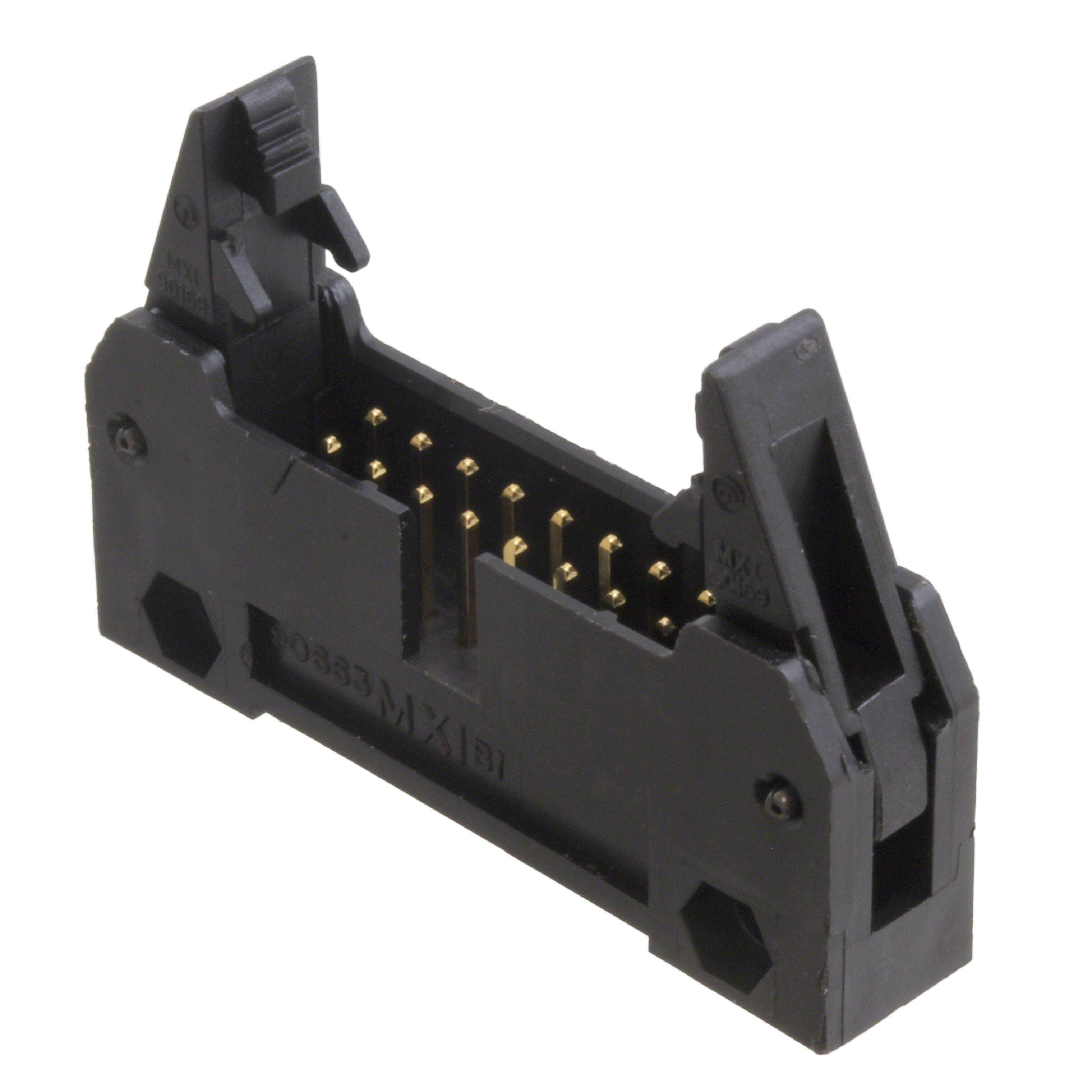

0906633163

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole QF-50? Tray
PDF
/
Inventory: 3352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled

Technical

Packaging Bulk
Series QF 50 90663
Feature Mounting Flange
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.200 5.08mm

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 118.1μin 3.00μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
