0906633103
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

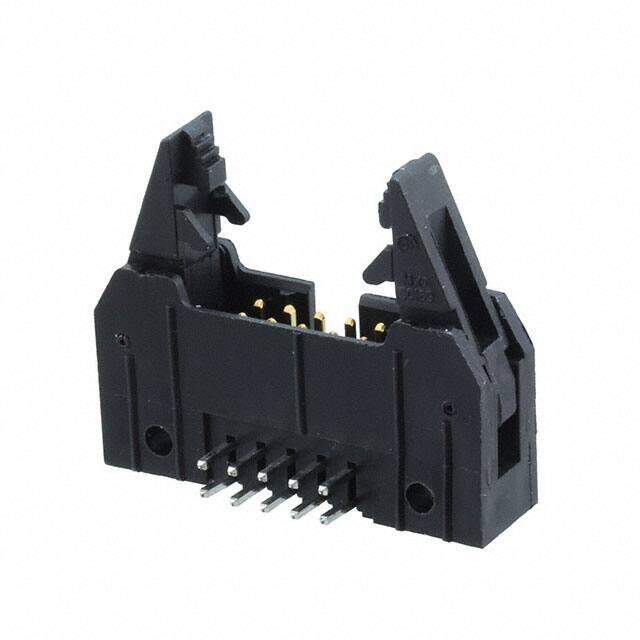

Conn Ejector Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray
PDF
/
Inventory: 8195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Packaging Bulk
Series QF 50 90663
JESD-609 Code e3
Feature Mounting Flange
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Voltage - Rated AC 250V
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number of Contacts 10
Contact Finish - Post Tin
Contact Length - Mating 0.200 5.08mm
Contact Gender Male
UL Flammability Code 94V-0
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
