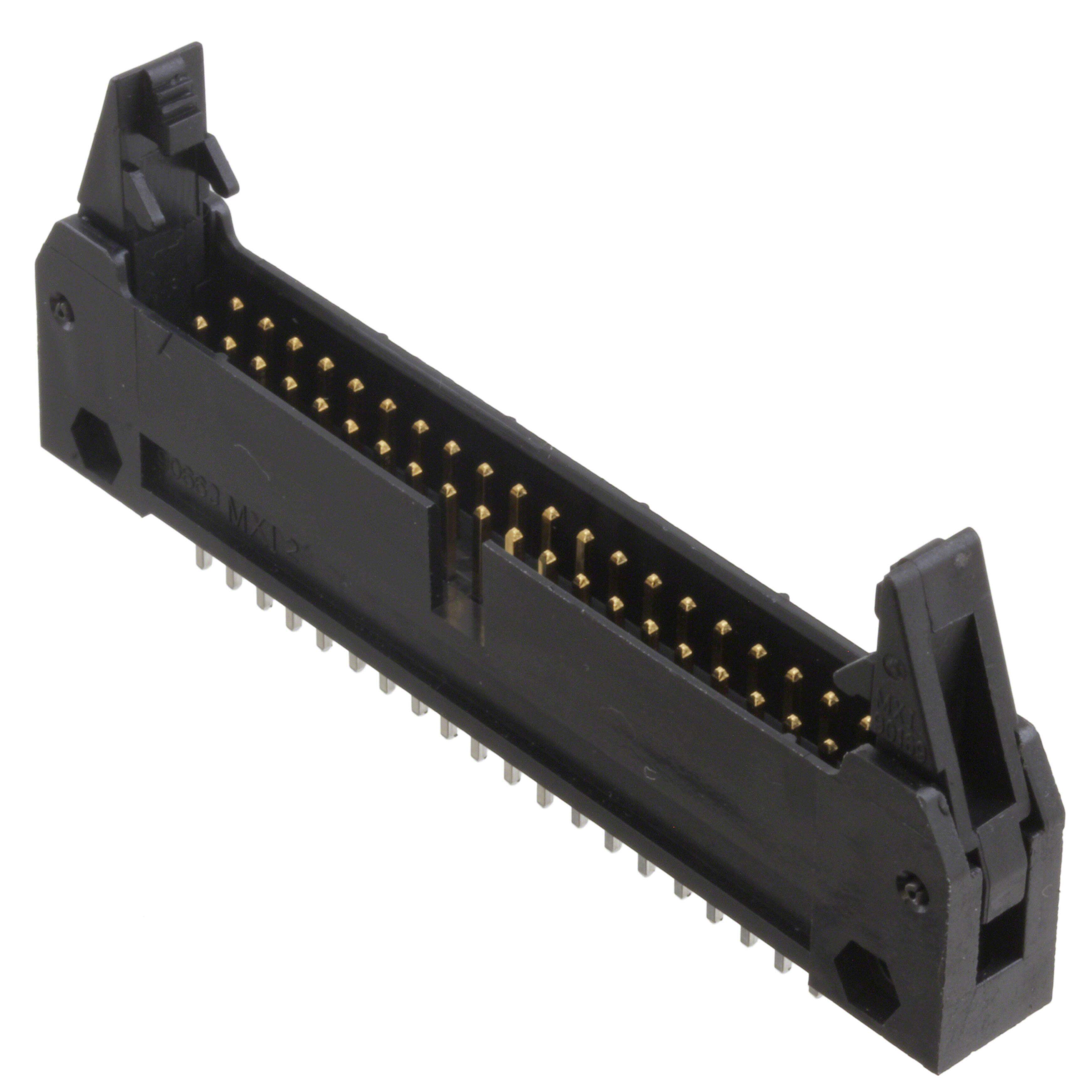

0906631402
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole QF-50? Tray
PDF
/
Inventory: 8095
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Packaging Tray
Series QF 50 90663
Feature Mounting Flange
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 40
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.642 16.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.200 5.08mm
Overall Contact Length 0.657 16.70mm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
