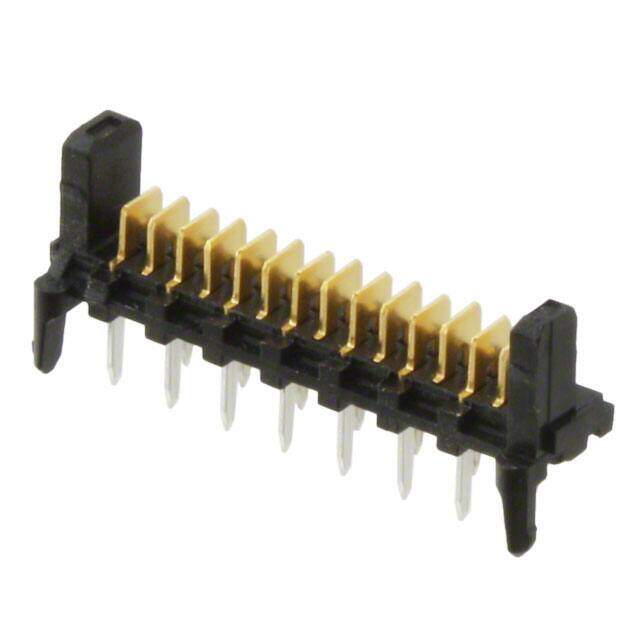

0903257014 image
Favorite
0903257014 image
Favorite

0903257014

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Wire to Board HDR 14 POS 1.27mm Solder ST Thru-Hole Picoflex? Tube
PDF
/
Buying Options
Total Price: USD $3.86
Unit Price: USD $3.8632
≥1 USD $3.8632
≥10 USD $3.40208
≥100 USD $2.706352
≥500 USD $2.242442
Inventory: 1999
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 24.0μin 0.61μm

Technical

Shrouding Shrouded - 2 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.252 6.40mm
Current Rating (Amps) 1.2A
Contact Type Male Blade
Contact Finish - Mating Palladium-Nickel
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Picoflex PF-50 90325
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 31 Weeks
