0901362330
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

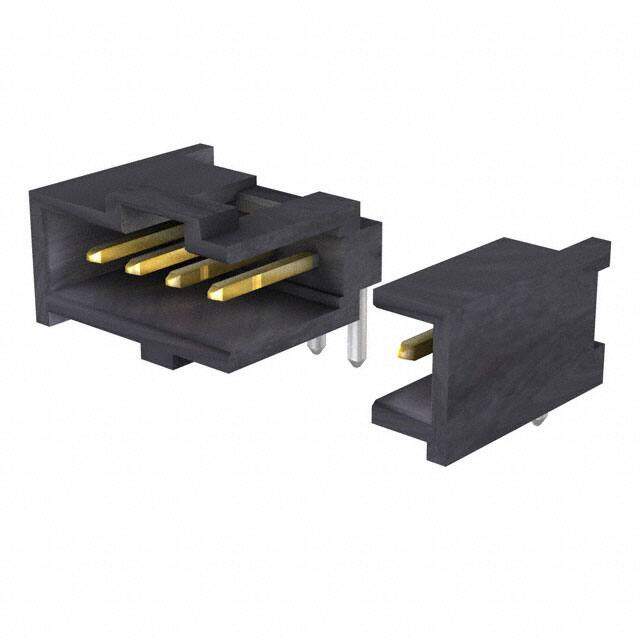

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 6574
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 79.55mm
Technical
Number of Circuits 25
Contact Resistance 20mOhm
Housing Color Black
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.284 7.21mm
Depth 10.9mm
Orientation Right Angle
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 1
Applications Automotive, General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 30
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid III 90136
Packaging Tray
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
