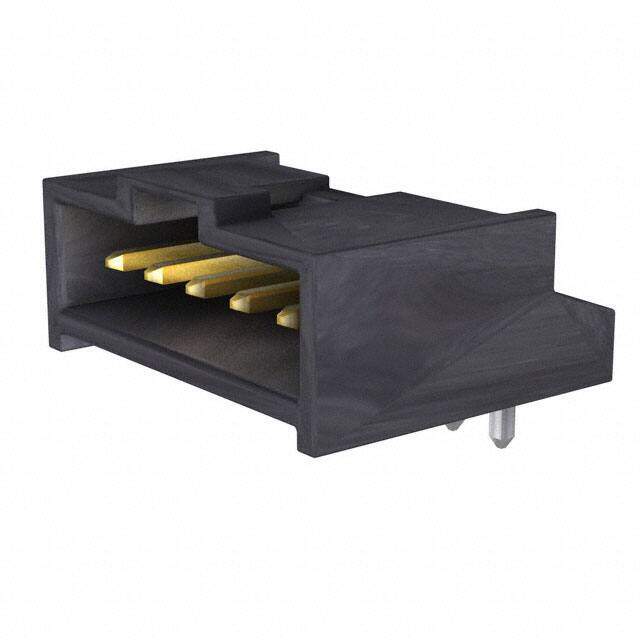

0901362305 image
Favorite
0901362305 image
Favorite

0901362305

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 2606
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled

Technical

Packaging Tray
Series C-Grid III 90136
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose
Number of Rows 1
Additional Feature C-GRID III, POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.284 7.21mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.266 6.75mm
UL Flammability Code 94V-0

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 118.1μin 3.00μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
