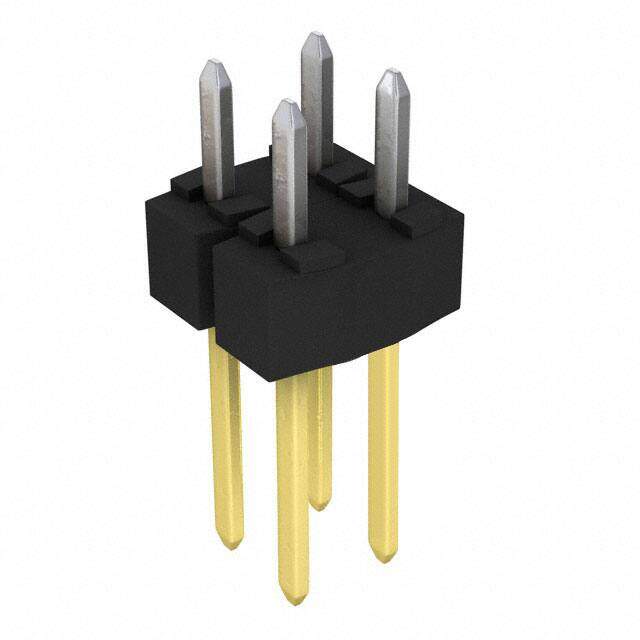

0901310922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole C-Grid III? Bag
PDF
/
Inventory: 8645
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Overall Contact Length 0.478 12.15mm
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.098 2.50mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C-Grid III 90131
Packaging Tray
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
