0901310785
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

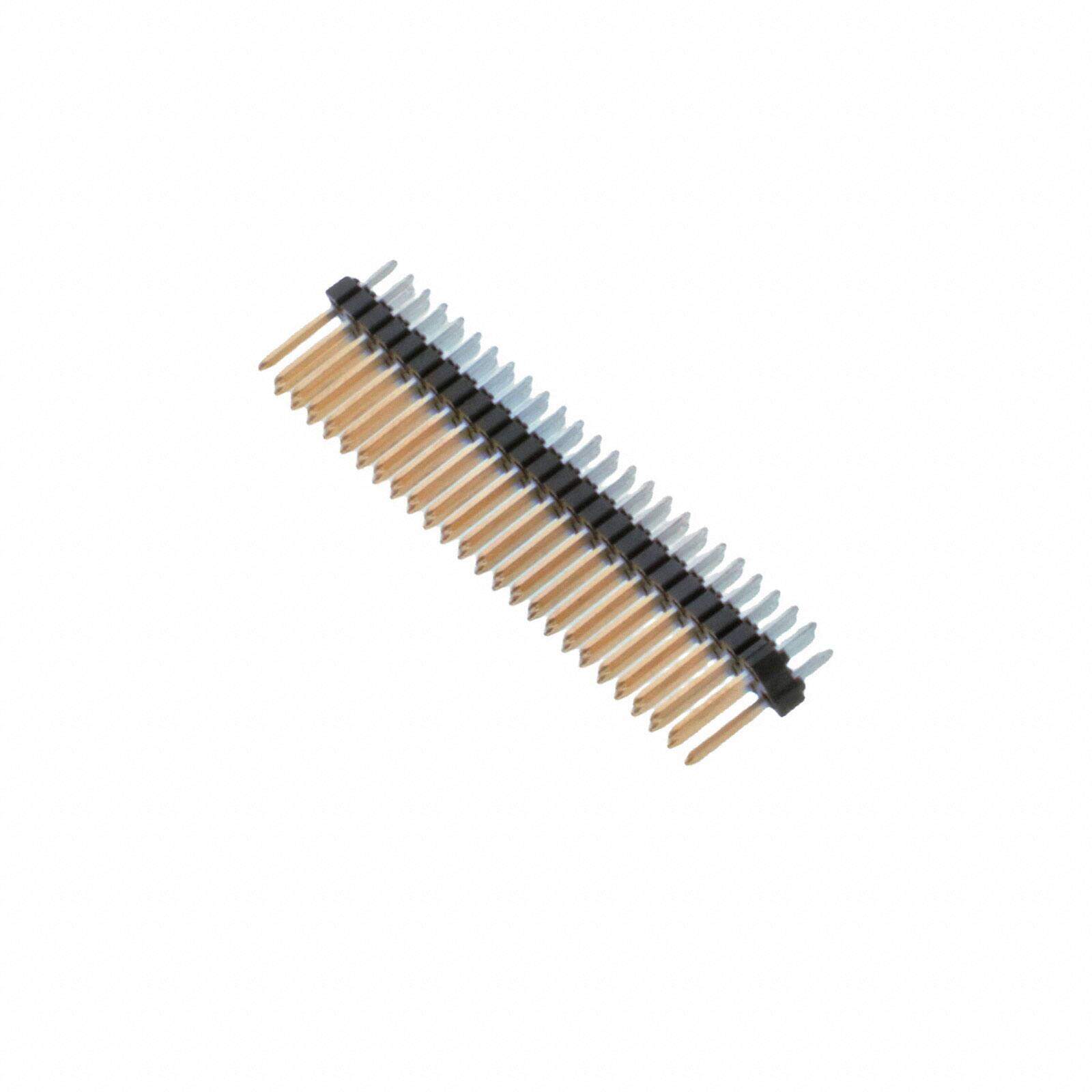

Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole C-Grid III? Tray
PDF
/
Buying Options
Total Price: USD $5.54
Unit Price: USD $5.544
≥1 USD $5.544
≥10 USD $4.82328
≥100 USD $4.246
Inventory: 4645
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Packaging Bulk
Series C-Grid III 90131
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 50
Applications Automotive, General Purpose
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.098 2.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.266 6.75mm
Overall Contact Length 0.478 12.15mm
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
