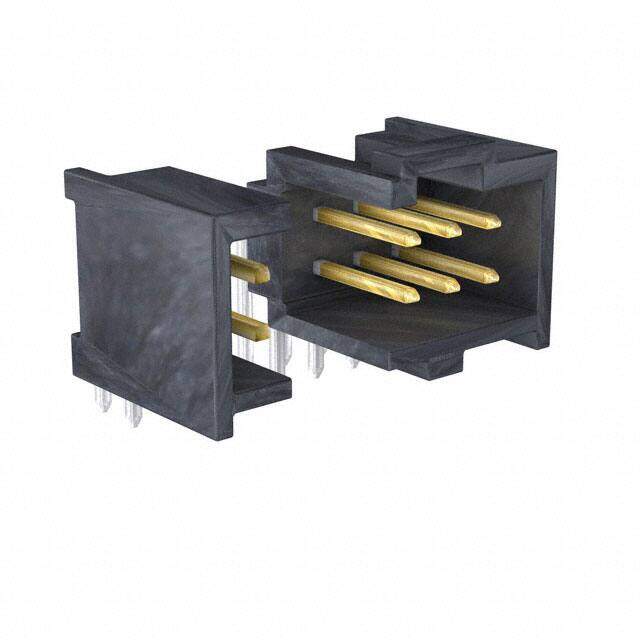

0901303316 image
Favorite
0901303316 image
Favorite

0901303316

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 2412
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled

Technical

Packaging Tray
Series C-Grid III 90130
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Applications Automotive, General Purpose
Number of Rows 2
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.384 9.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.266 6.75mm

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 118.1μin 3.00μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
