0901301326
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

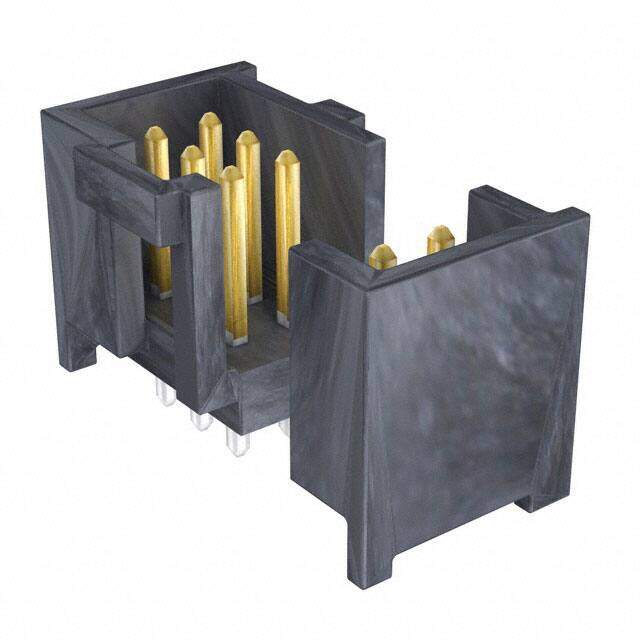

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 1553
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 2
Applications Automotive, General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid III 90130
Packaging Tray
Max Voltage Rating (DC) 350V
Max Voltage Rating (AC) 350V
Number of Circuits 24
Overall Contact Length 0.510 12.95mm
Housing Color Black
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.429 10.90mm
Depth 9.75mm
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 35.74mm
