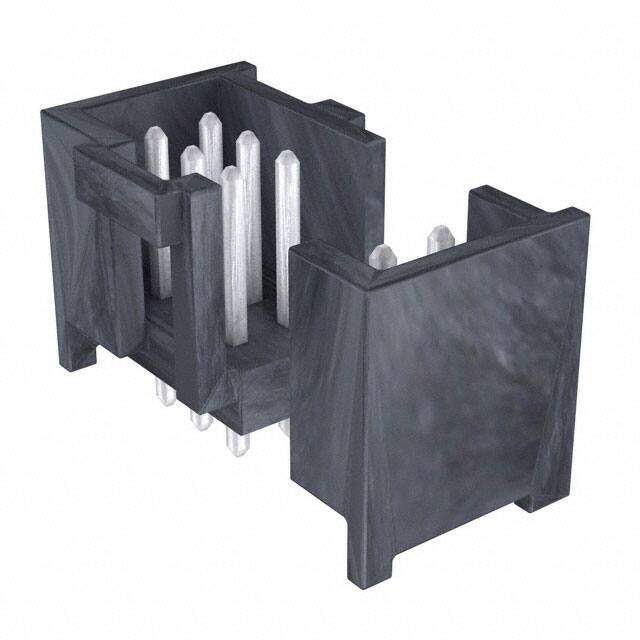

0901301138
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings C-Grid Shrd Hdr DR V Hdr DR Vt Sn-A 38/38
PDF
/
Inventory: 9741
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Packaging Tray
Series C-Grid III 90130
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 38
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Applications Automotive, General Purpose
Number of Rows 2
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 2.54mm
Orientation Vertical
Depth 9.75mm
Insulation Height 0.429 10.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.266 6.75mm
Housing Color Black
Overall Contact Length 0.510 12.95mm
Number of Circuits 34
Max Voltage Rating (AC) 350V
Dimensions
Length 50.98mm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
