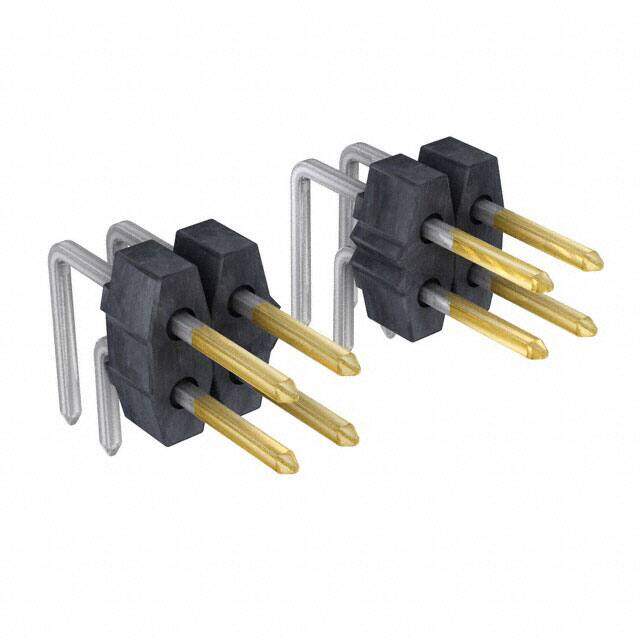

0901220940
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole C-Grid III? Bag
PDF
/
Inventory: 7688
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Packaging Tray
Series C-Grid III 90122
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 40
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Applications Automotive, General Purpose
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Right Angle
Depth 13.54mm
Insulation Height 0.242 6.14mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.266 6.75mm
Housing Color Black
Contact Resistance 20mOhm
Dimensions
Length 50.8mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
