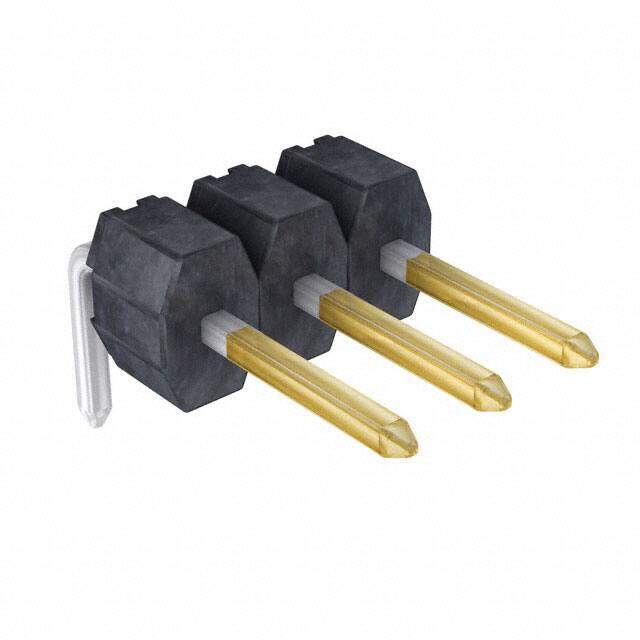

0901210923

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 5134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 7.62mm

Technical

Number of Circuits 2
Contact Resistance 20mOhm
Housing Color Black
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Number of Contacts 3
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Depth 11mm
Orientation Right Angle
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Applications Automotive, General Purpose
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 3
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C-Grid III 90121
Packaging Tray

Physical

Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Brass
