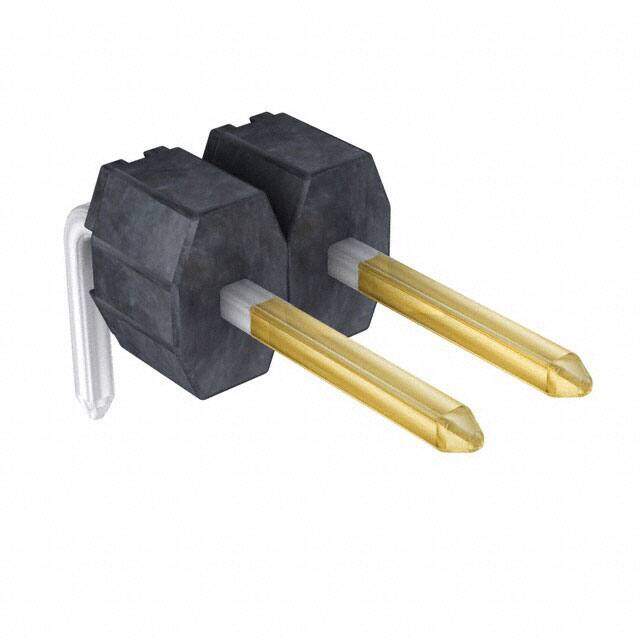

0901210922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 9566
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Glow Wire Compliant Non-compliant
Mating Post Length 6.75mm
Number of Circuits 40
Lead Length 2.9mm
Contact Gender Male
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Number of Contacts 2
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Orientation Right Angle
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 350V
Gender Male
Number of Rows 1
Applications Automotive, General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 2
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C-Grid III 90121
Packaging Tray
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Plating Gold
Contact Material Brass
