0901210782

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

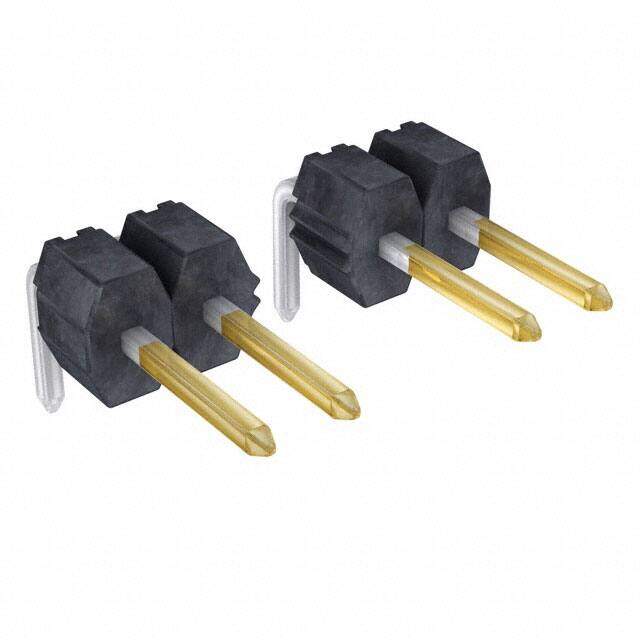

Description Conn Unshrouded Header HDR 22 POS 2.54mm Solder RA Thru-Hole C-Grid III? Tray
PDF
/
Inventory: 9662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 15.0μin 0.38μm

Technical

Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose
Number of Positions 22
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C-Grid III 90121
Packaging Tray

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 10 Weeks
