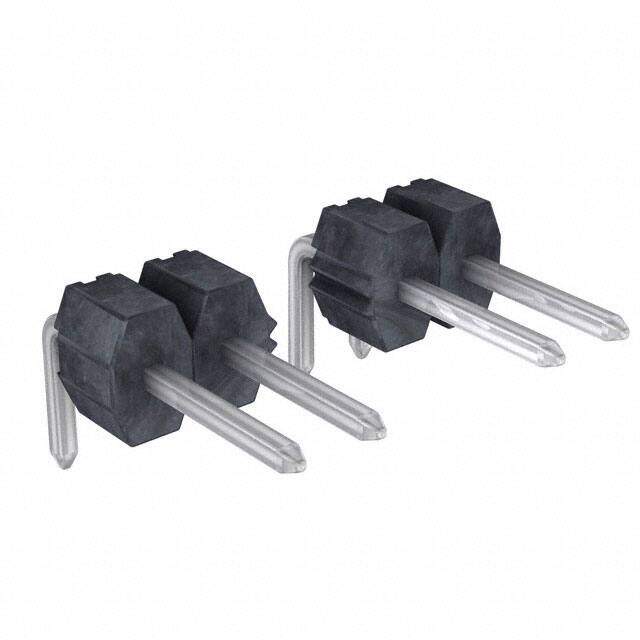

0901210151
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 31 POS 2.54mm Solder RA Thru-Hole C-Grid III? Bag
PDF
/
Inventory: 6013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Length 78.74mm
Technical
Number of Circuits 30
Contact Resistance 20mOhm
Housing Color Black
Contact Length - Mating 0.266 6.75mm
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.142 3.60mm
Depth 11mm
Orientation Right Angle
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 31
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid III 90121
Packaging Tray
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
