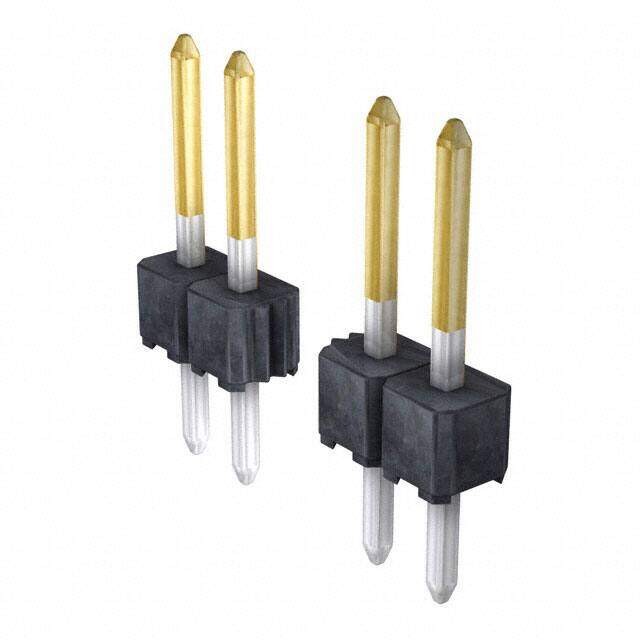

0901201086
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CGRID SR VT PN 675290MM AUG 6CKT
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.04192
≥100 USD $0.860754
≥500 USD $0.634234
≥1000 USD $0.602518
≥3000 USD $0.588931
Inventory: 1350
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 2.00μin 0.051μm
Plating Thickness FLASH inch
Technical
Overall Contact Length 0.478 12.15mm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.266 6.75mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.114 2.90mm
Reference Standard CSA, UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.098 2.50mm
Terminal Pitch 2.54mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose
Number of Positions 6
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid III 90120
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 15 Weeks
