0901200124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

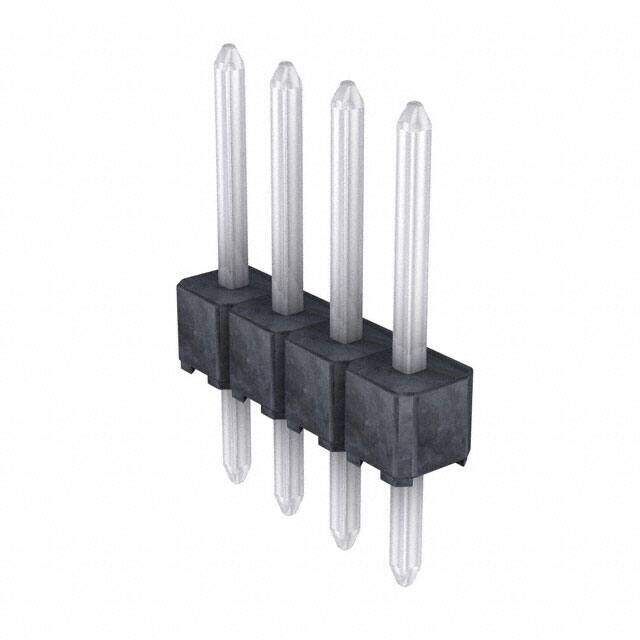

CONN HEADER VERT 4POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.6336
≥100 USD $0.527912
≥500 USD $0.422356
≥1000 USD $0.369565
≥3000 USD $0.351085
Inventory: 4079
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series C-Grid III 90120
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 4
Applications Automotive, General Purpose
Number of Rows 1
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.114 2.90mm
Shrouding Unshrouded
Contact Length - Mating 0.266 6.75mm
Rated Current (Signal) 3A
Overall Contact Length 0.478 12.15mm
Durability 30 Cycles
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
