0879141416

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

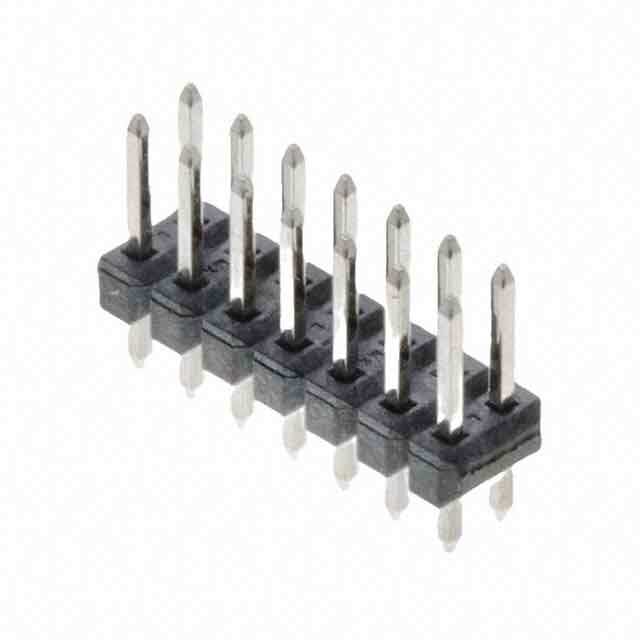

Description Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole C-Grid? Tray
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.83248
≥100 USD $0.693774
≥500 USD $0.485654
≥1000 USD $0.461375
≥3000 USD $0.450965
Inventory: 5610
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled

Technical

Packaging Tray
Series C-Grid 87914
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 14
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Contact Length - Mating 0.230 5.84mm
UL Flammability Code 94V-0
Overall Contact Length 0.430 10.92mm

Dimensions

Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
