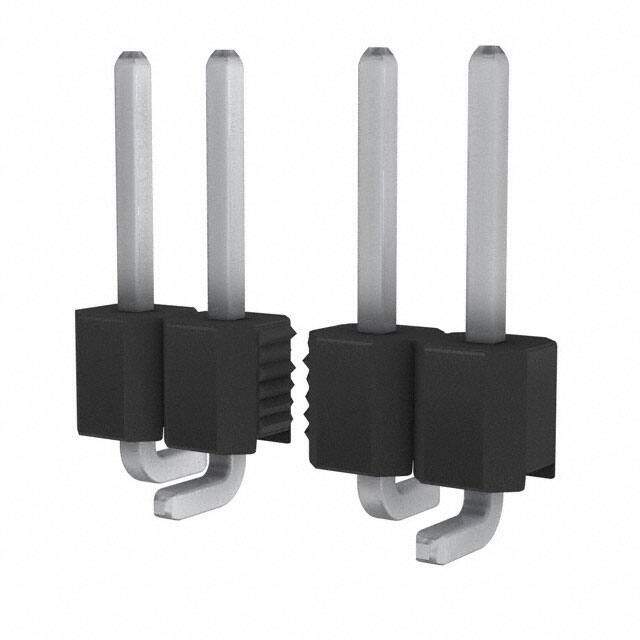

0878980826

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD SL? Tube
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.2672
≥1 USD $1.2672
≥10 USD $1.07712
≥100 USD $0.88968
≥500 USD $0.824402
Inventory: 2917
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Contact Length - Mating 0.230 5.84mm
Shrouding Unshrouded
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.098 2.50mm
Terminal Pitch 2.54mm
Total Number of Contacts 8
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 8
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series C-Grid SL 87898
Packaging Tube

Physical

Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
