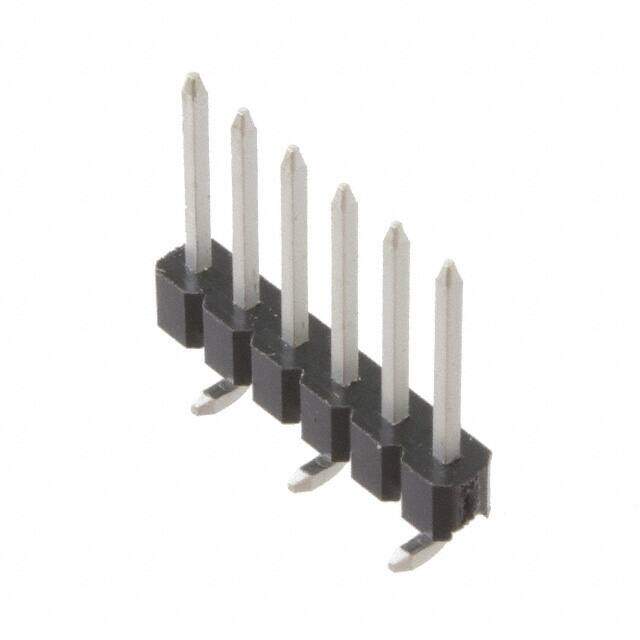

0878980666

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.0328
≥1 USD $2.0328
≥10 USD $1.7336
≥100 USD $1.432068
≥500 USD $1.130554
≥1000 USD $1.002426
Inventory: 2203
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled

Technical

Operating Temperature -55°C~105°C
Packaging Tube
Series C-Grid SL 87898
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 6
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 3A
Total Number of Contacts 6
Terminal Pitch 2.54mm
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.320 8.13mm

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 78.7μin 2.00μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
