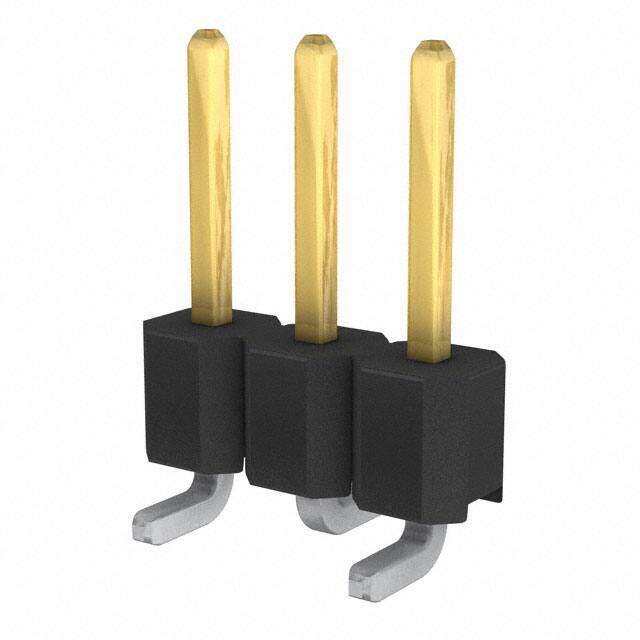

0878980304
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST SMD SL? Frame
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.60456
≥100 USD $0.50358
≥500 USD $0.402873
≥1000 USD $0.352519
≥3000 USD $0.327334
Inventory: 11916
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Tray
Series C-Grid SL 87898
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Breakaway
Number of Positions 3
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
