0878340619
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

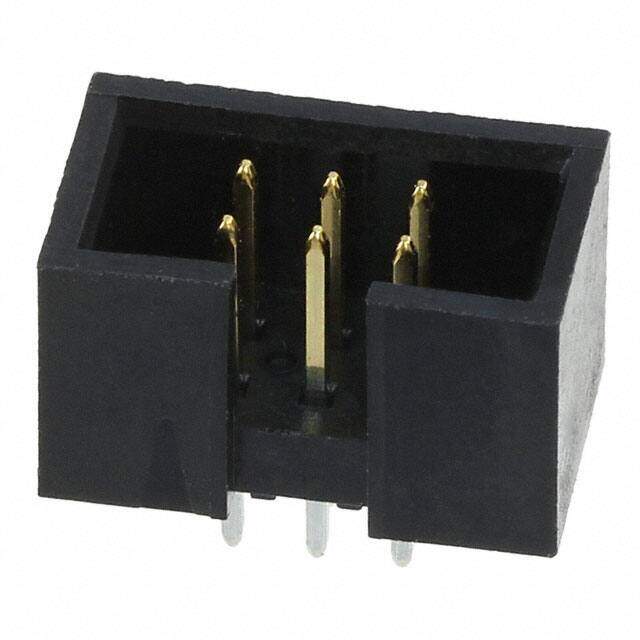

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole C-Grid? Tray
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.0428
≥100 USD $0.8613
≥500 USD $0.679932
≥1000 USD $0.60287
≥3000 USD $0.589274
Inventory: 4444
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Packaging Tray
Series C-Grid 87834
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.365 9.27mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.135 3.43mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Overall Contact Length 0.490 12.45mm
Dimensions
Contact Finish Thickness - Mating 5.11μin 0.130μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
