0878331820
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

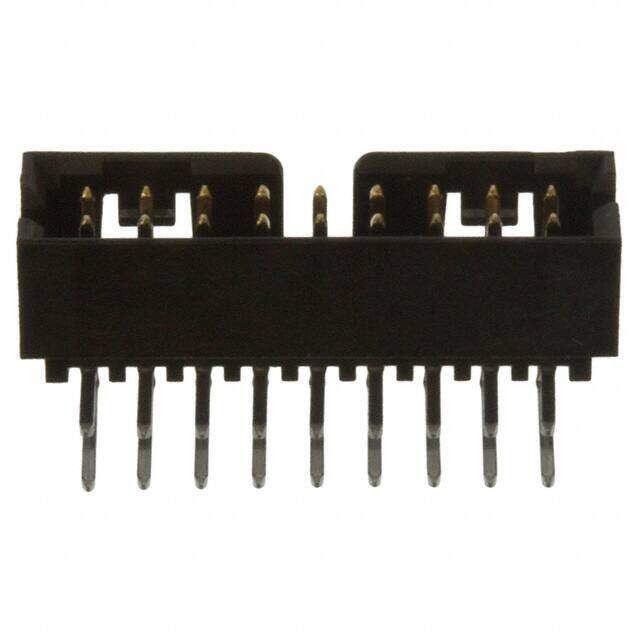

Conn Shrouded Header HDR 18 POS 2mm Solder RA Thru-Hole Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.67
Unit Price: USD $1.672
≥1 USD $1.672
≥10 USD $1.42296
≥100 USD $1.17524
≥500 USD $1.089
Inventory: 13744
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Tube
Series Milli-Grid 87833
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 18
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.248 6.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.085 2.16mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.141 3.60mm
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
