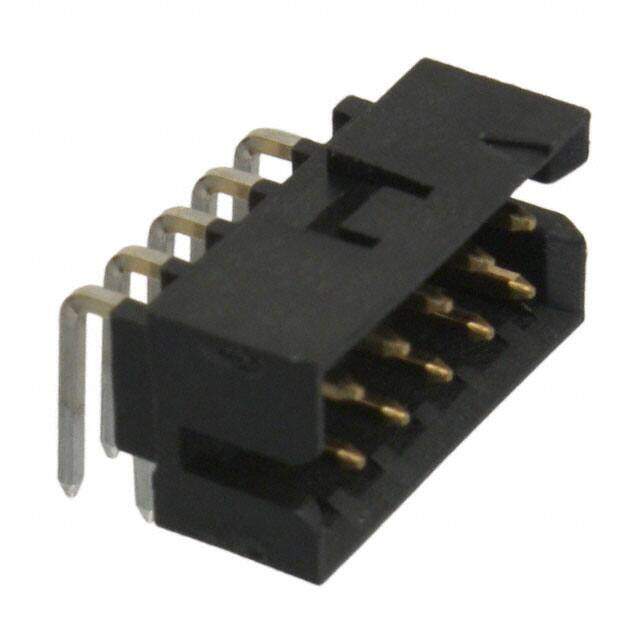

0878331019
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 10 POS 2mm Solder RA Thru-Hole Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.0824
≥1 USD $1.0824
≥10 USD $0.895928
≥100 USD $0.746601
≥500 USD $0.597274
≥1000 USD $0.522614
≥3000 USD $0.496487
Inventory: 4672
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Technical
Packaging Tube
Series Milli-Grid 87833
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.248 6.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.085 2.16mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.141 3.60mm
Dimensions
Contact Finish Thickness - Mating 2.00μin 0.051μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
