0878321022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

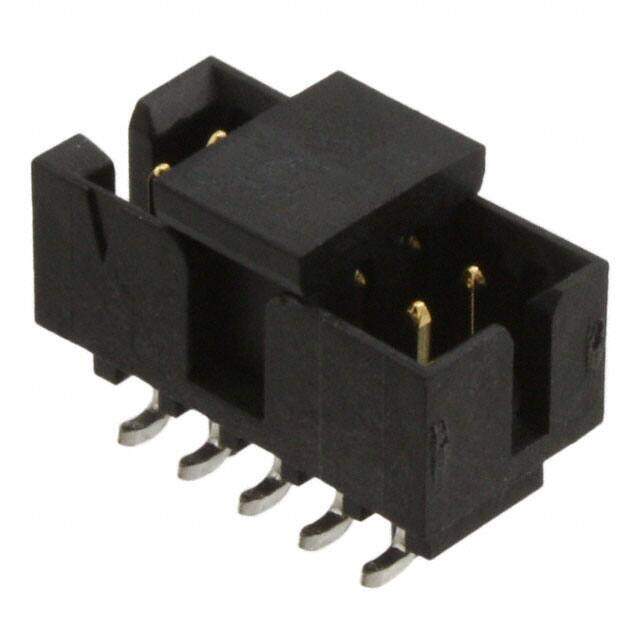

Conn Shrouded Header HDR 10 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.161178
≥100 USD $0.9592
≥500 USD $0.757258
≥1000 USD $0.671431
≥3000 USD $0.656286
Inventory: 740
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Length 12.65mm
Technical
Max Voltage Rating (AC) 125V
Number of Circuits 10
Housing Color Black
Contact Length - Mating 0.141 3.60mm
Contact Finish - Post Tin
Number of Contacts 10
Lead Pitch 2mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.252 6.40mm
Depth 6.3mm
Orientation Vertical
Pitch 2mm
Contact Type Male Pin
Contact Finish - Mating Gold
Voltage - Rated DC 125V
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Keying Slot, Pick and Place
Series Milli-Grid 87832
Packaging Tube
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
