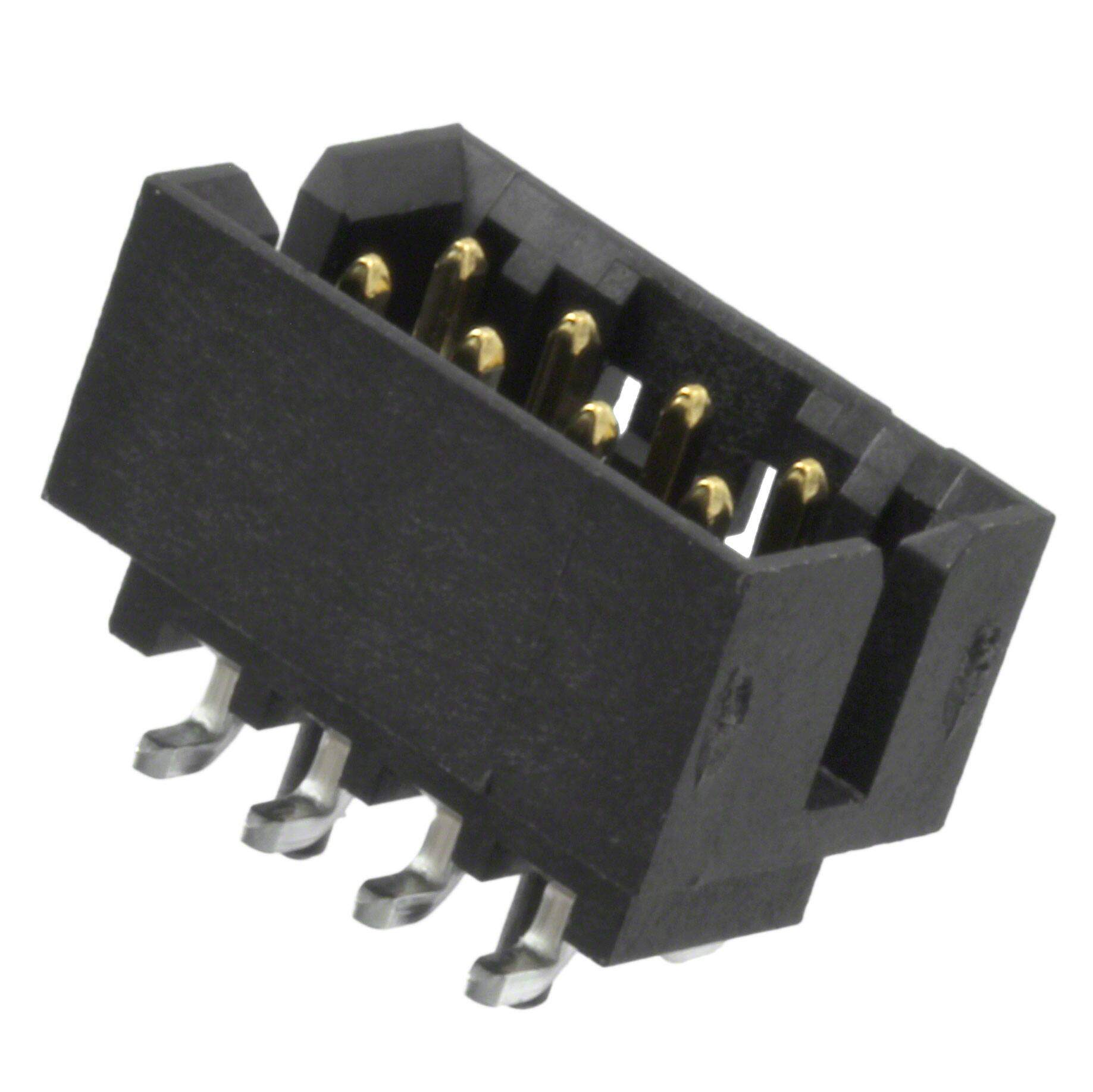

0878320826
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MGRID HDR SHRD SMT /LCK/CAP 8CKT
PDF
/
Buying Options
Total Price: USD $2.47
Unit Price: USD $2.471821
≥1 USD $2.471821
≥10 USD $2.331905
≥100 USD $2.19991
≥500 USD $2.075386
≥1000 USD $1.957911
Inventory: 5005
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 30μin
Technical
Mating Contact Pitch 0.079 inch
Rated Current (Signal) 2A
Operating Temperature (Min) -55°C
Operating Temperature (Max) 105°C
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.141 3.60mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.252 6.40mm
Total Number of Contacts 8
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place
Series Milli-Grid 87832
Packaging Tube
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
