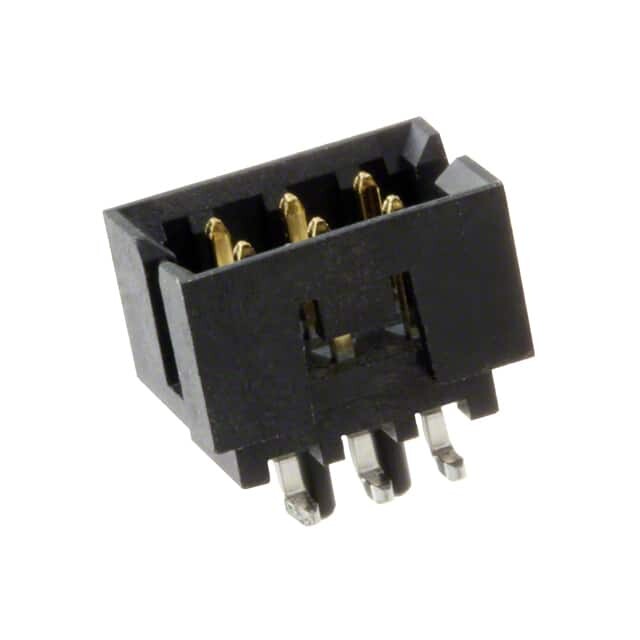

0878320621
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 6 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Inventory: 3024
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Tube
Series Milli-Grid 87832
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 6
Insulation Height 0.252 6.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.141 3.60mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
