0878320420
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

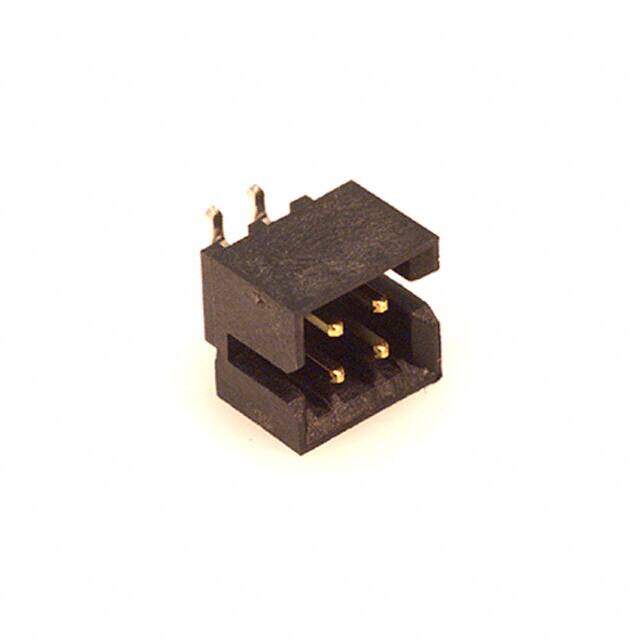

Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.70488
≥100 USD $0.587312
≥500 USD $0.517
Inventory: 6478
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Length - Mating 0.141 3.60mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.252 6.40mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Milli-Grid 87832
Packaging Tube
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
