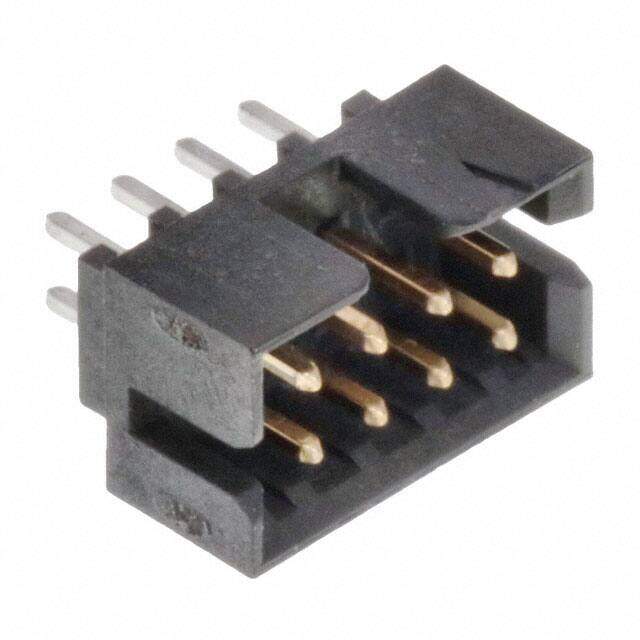

0878310819
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MGRID HDR SHRD VT GFLF 8CKT
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.715088
≥100 USD $0.595848
≥500 USD $0.476678
≥1000 USD $0.417094
≥3000 USD $0.396238
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Tube
Series Milli-Grid 87831
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.252 6.40mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.098 2.50mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.141 3.60mm
Dimensions
Contact Finish Thickness - Mating 1.97μin 0.050μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
