0877604616
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

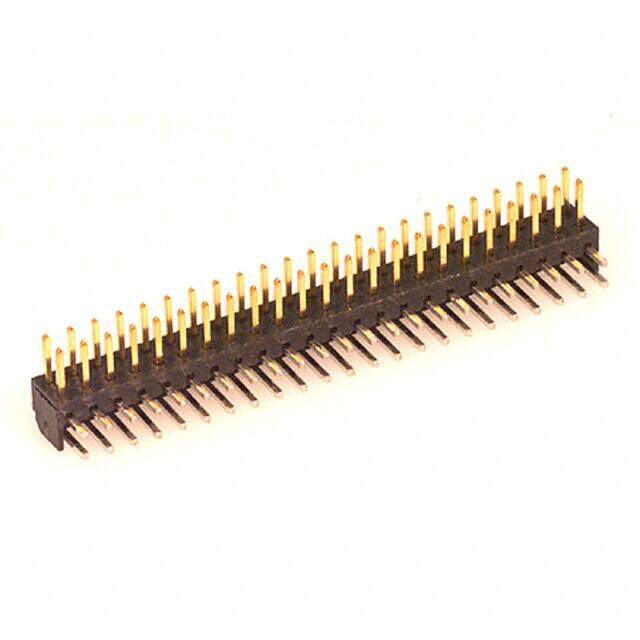

Conn Unshrouded Header HDR 46 POS 2mm Solder RA Thru-Hole Milli-Grid? Tray
PDF
/
Inventory: 7681
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.102 2.60mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.169 4.30mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 46
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Milli-Grid 87760
Packaging Tray
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 22 Weeks
