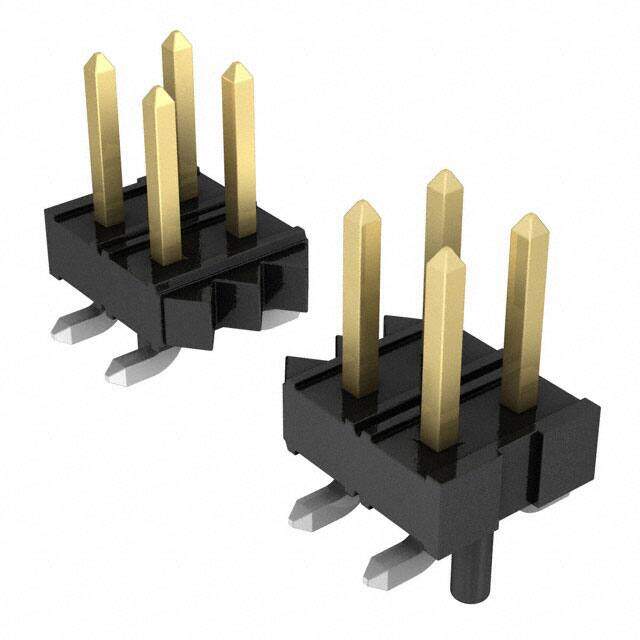

0877591650
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 16 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.60453
≥100 USD $1.325465
≥500 USD $1.046426
≥1000 USD $0.927837
Inventory: 4752
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Length - Mating 0.150 3.81mm
Contact Finish - Post Tin
Shrouding Unshrouded
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.059 1.50mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Number of Positions 16
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series Milli-Grid 87759
Packaging Tube
Physical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
