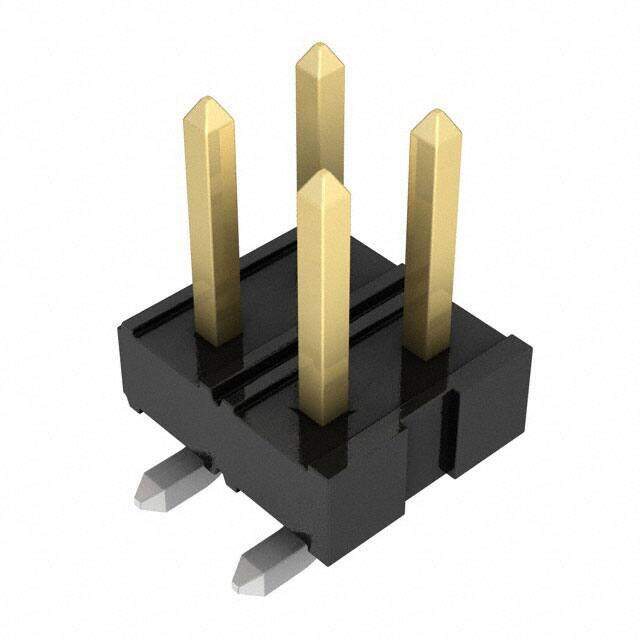

0877590464
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Board to Board HDR 4 POS 2mm Solder ST SMD Milli-Grid? Tube
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.931203
≥1 USD $0.931203
≥10 USD $0.878494
≥100 USD $0.82877
≥500 USD $0.781859
≥1000 USD $0.737598
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Thermoplastic
Technical
Packaging Tube
Series Milli-Grid 87759
JESD-609 Code e3
Feature Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Applications Automotive, General Purpose, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Vertical
Depth 5.5mm
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.079 2.00mm
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.150 3.81mm
Housing Color Black
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
