0874370373
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

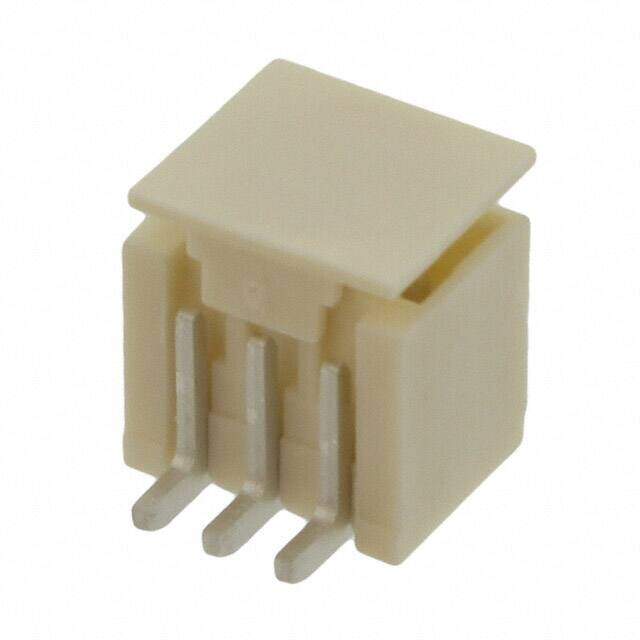

CONN HEADER 3POS 1.5MM VERT SMD
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.57728
≥100 USD $0.44924
Inventory: 19594
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.4mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Length - Mating 0.106 2.70mm
Shrouding Shrouded - 4 Wall
Insulation Color Beige
Pitch - Mating 0.059 1.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.199 5.05mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications General Purpose, Medical
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Pick and Place
Series Pico-SPOX 87437
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Brass Alloy
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
