0874270842

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

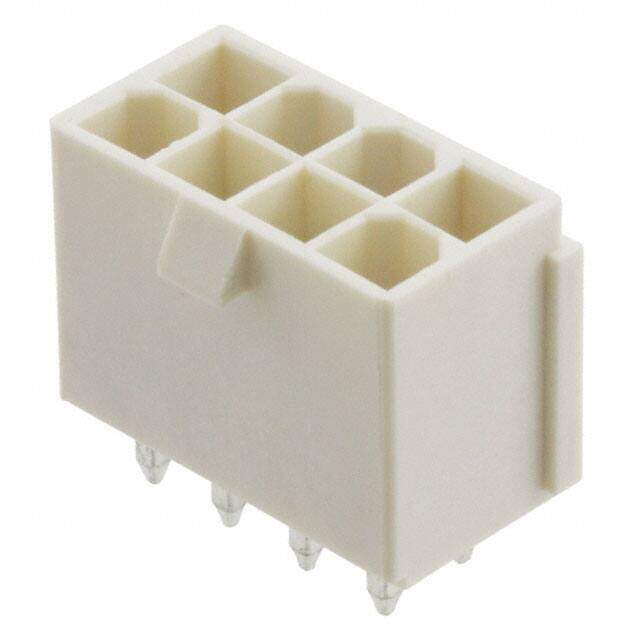

Description CONN HEADER VERT 8POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.06568
≥100 USD $0.880246
≥500 USD $0.815654
Inventory: 18150
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Empty Shell NO
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Beige
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini-Fit Jr 87427
Packaging Bulk

Physical

Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 7 Weeks
