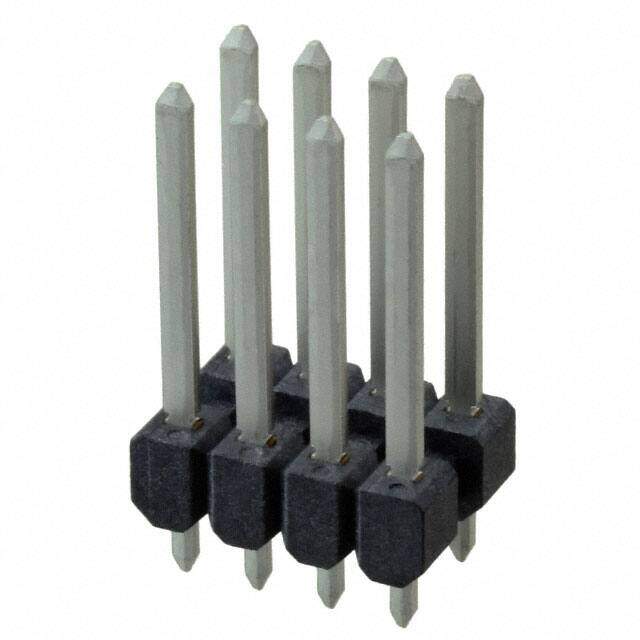

0757575141 image
Favorite
0757575141 image
Favorite

0757575141

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 8POS 3.5MM
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.436035
≥1 USD $1.436035
≥10 USD $1.354752
≥100 USD $1.278069
≥500 USD $1.205726
≥1000 USD $1.137477
Inventory: 8728
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Overall Contact Length 0.931 23.64mm
Contact Length - Mating 0.633 16.09mm
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.236 (6.00mm)
Insulation Color Black
Pitch - Mating 0.138 3.50mm
Current Rating 16A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.177 4.50mm
Terminal Pitch 3.5mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Voltage - Rated DC 500V
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 8
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MX150 75757
Packaging Tube

Physical

Housing Material Thermoplastic
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Cartridge Brass

Supply Chain

Factory Lead Time 9 Weeks
