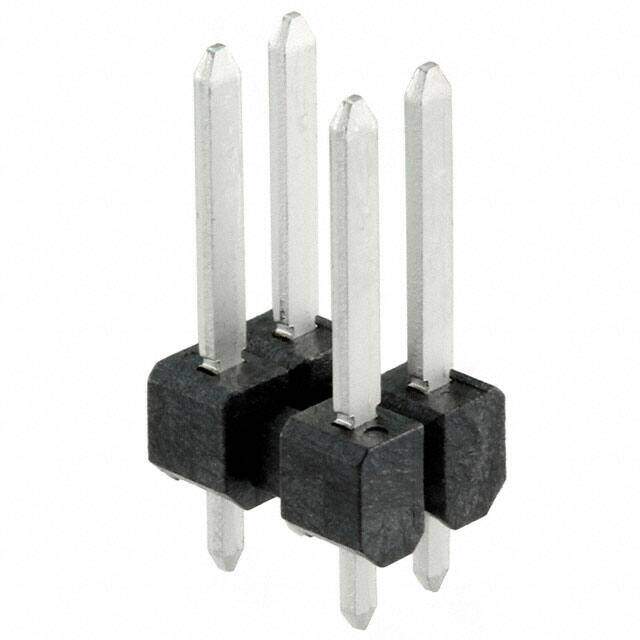

0757571121

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 4POS 3.5MM
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.593824
≥100 USD $0.494912
≥500 USD $0.395912
≥1000 USD $0.346421
≥3000 USD $0.329102
Inventory: 32101
Minimum: 1
-
+

Technical Details

Physical

Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Polymer
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Cartridge Brass

Technical

Packaging Tube
Series MX150 75757
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 4
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Applications Automotive
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 3.5mm
Orientation Vertical
Depth 9.6mm
Insulation Height 0.177 4.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 16A
Pitch - Mating 0.138 3.50mm
Insulation Color Black
Row Spacing - Mating 0.236 (6.00mm)
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.441 11.20mm
Housing Color Black
Overall Contact Length 0.738 18.75mm
Number of Circuits 4
Max Voltage Rating (DC) 500V

Supply Chain

Factory Lead Time 17 Weeks

Dimensions

Length 7mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
