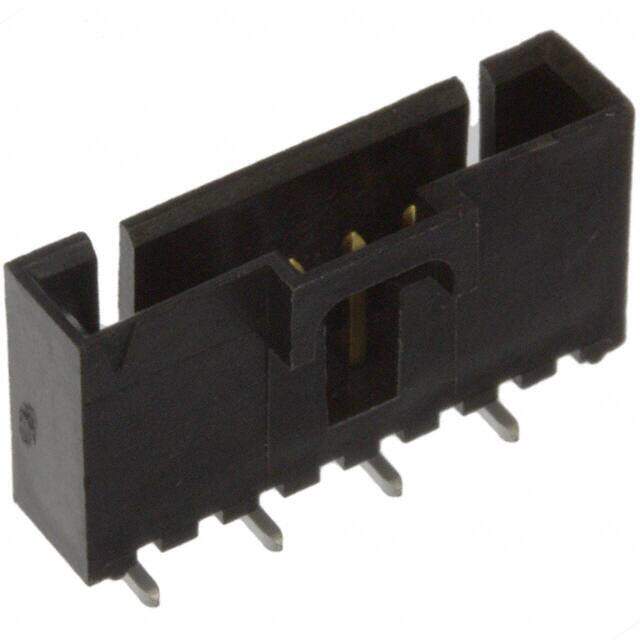

0740991008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST SMD SL? Tube
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
≥10 USD $1.98689
≥100 USD $1.641464
≥500 USD $1.29587
≥1000 USD $1.149007
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyester, Glass Filled
Mounting Option 1 LOCKING
Technical
Packaging Tube
Series SL 74099
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Total Number of Contacts 8
Insulation Height 0.450 11.43mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Operating Temperature (Min) -40°C
Rated Current (Signal) 3A
Contact Resistance 30mOhm
Durability 50 Cycles
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
