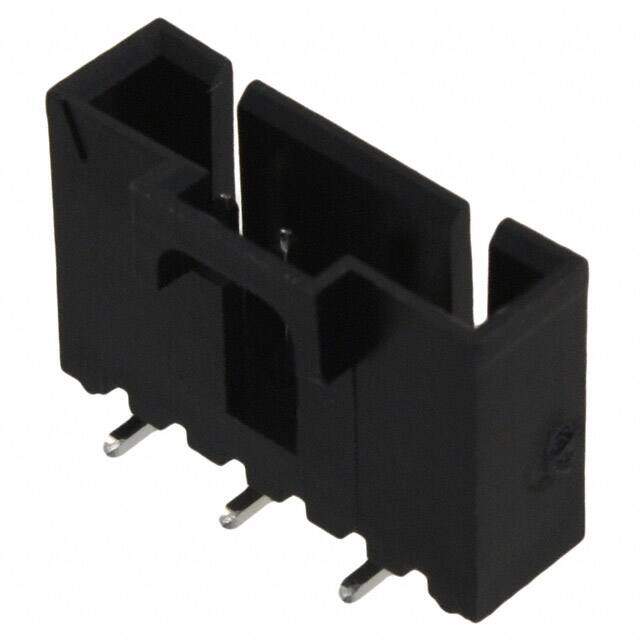

0740990006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 6POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.29389
≥100 USD $1.06898
≥500 USD $0.843911
≥1000 USD $0.748273
≥3000 USD $0.731394
Inventory: 823
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Technical
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number of Contacts 6
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.450 11.43mm
Orientation Straight
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SL 74099
Packaging Tube
Physical
Housing Material Thermoplastic
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
