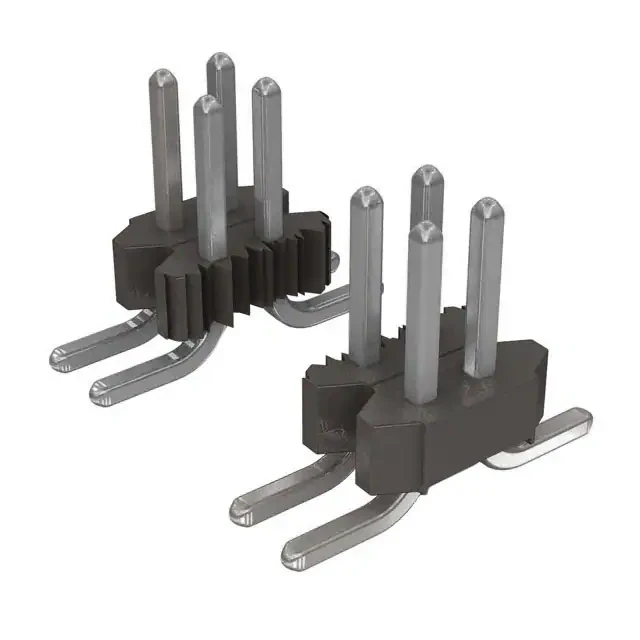

0713085426
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings CGrid SMT Bkwy Hdr Tin 26Ckt Tube
PDF
/
Inventory: 7685
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 59.0μin 1.50μm
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 33.02mm
Technical
Max Voltage Rating (AC) 250V
Number of Circuits 24
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.240 6.10mm
Shrouding Unshrouded
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Depth 5.08mm
Orientation Vertical
Total Number of Contacts 26
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 26
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid 71308
Packaging Tube
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
